2005 Ford F-250SD XL



  • $10,446 SAVINGS
    $16,021 OUR PRICE:

  • Retail Price: $25,668
  • Doc Fee +$799
  • Dealer Discount $10,446
  • Our Price $16,021

Visit our Store

Vehicle Information

VIN: 1FTSX21PX5EB15940
Stock #: KS4458
Model Code: X21
  • Body Style 4D Extended Cab
  • Exterior Color Yellow
  • Mileage 215,000
  • Engine 8 Cyl - 6 L
  • Fuel Type Diesel

Highlighted Features

Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
  • 4WD/AWD
  • Turbo Charged Engine

Dealer Comments

Recent Arrival! 2005 Yellow Ford F-250SD 4D Extended Cab 4WD Power Stroke 6.0L V8 DI 32V OHV Turbodiesel Power Stroke 6.0L V8 DI 32V OHV Turbodiesel, 4WD, 3.73 Axle Ratio, 4-Wheel Disc Brakes, ABS brakes, Air Conditioning, AM/FM radio, Dual front impact airbags, Front anti-roll bar, Front reading lights, Passenger cancellable airbag, Passenger vanity mirror, Power steering, Rear step bumper, Split folding rear seat, Tachometer, Variably intermittent wipers, Voltmeter, Power Stroke 6.0L V8 DI 32V OHV Turbodiesel, 4WD.


Clean CARFAX.
HOME OF THE SETH WADLEY PROMISE OIL CHANGES AND ENGINES FOR LIFE. PUT A LITTLE GRAVEL IN YOUR TRAVEL AND SEE US I-35 EXIT 72 PAULS VALLEY! Advertised pricing is believed to be accurate, but cannot be guaranteed, call dealer to confirm. State/local taxes, title & registration fees are not included in advertised price. Advertised price includes $799 dealer documentation fee. See Dealer for warranty details.
OKLAHOMA"S #1 SELLING F-SERIES DEALER FOR 12 YRS RUNNING, COME EXPERIENCE THE DIFFERENCE!

Eligible Benefits

All Features

  • 2-speed transfer case
  • 3.73 axle ratio
  • Four wheel drive
  • Manual locking front hubs
  • 72 amp/hr (650 CCA) maintenance-free battery
  • 130 amp alternator
  • Trailer tow pkg-inc: 7-wire harness w/relays, 7/4 pin combination connector, trailer brake wiring kit w/o controller
  • 142" WB
  • 6-3/4' pickup box w/tie-down hooks & partitionable/stackable storage
  • 9200# GVWR/2800# max payload
  • (2) front tow hooks
  • Mono-beam front axle w/coil springs
  • Front stabilizer bar
  • HD gas shock absorbers
  • (5) LT245/75R17E BSW all-season tires
  • 17" argent painted steel wheels w/painted center ornaments
  • Full-size spare tire w/lock & carrier
  • 2-ton mechanical jack
  • Pwr steering
  • Pwr 4-wheel disc brakes w/4-wheel anti-lock braking system
  • 29 gallon fuel tank
  • Argent painted front bumper w/grained mold-in-color top cover
  • Argent painted rear bumper
  • Black box-rail/tailgate top-edge moldings
  • Black lower air dam
  • Argent grille
  • Sealed beam halogen headlamps
  • Pickup box/cargo lights
  • Black door handles
  • Black fold-away manual mirrors
  • Solar tinted glass
  • Flip-out rear quarter windows
  • Interval wipers
  • Dual rear access doors
  • Removable locking tailgate w/black handle
  • Front/rear license plate bracket
  • HD vinyl front bench seat w/recline
  • Vinyl fold-up rear bench seat
  • Black vinyl full-floor covering
  • Color-keyed scuff plates
  • Black vinyl steering wheel
  • Belt Minder seatbelt-not-buckled chime & flashing warning light
  • (4) air registers w/positive shut-off
  • Electronic AM/FM stereo radio-inc: digital clock, (2) speakers
  • Rear door map pockets w/integrated "closed containers only" cupholders
  • Auxiliary pwr point
  • Color-keyed molded door trim panel-inc: hard armrest, grab handle, reflector
  • Instrument panel mounted dual cupholders, storage bin & trash bag hook
  • Glove box
  • Ashtray & cigar lighter
  • 11.5" day/night mirror
  • Color-keyed molded cloth headliner
  • Driver & passenger grab handles
  • Front passenger-side roof ride handle
  • Dual color-keyed cloth sunvisors-inc: driver-side map strap, passenger-side mirror insert
  • Dual color-keyed coat hooks
  • Front door operated dome lamp w/time delay off
  • Pwr 4-wheel disc brakes w/4-wheel anti-lock braking system
  • Driver & front passenger airbags w/passenger-side deactivation switch
  • Color-keyed safety belts w/front seat outboard adjustable D-rings
  • Front/rear child seat tethers (on all seats)
  • BlockerBeam

6.0L DI V8 TURBO-DIESEL "POWER STROKE" ENGINE

  • 750-CCA battery
  • turbo boost gauge

  • AM/FM radio
  • Air Conditioning
  • Power steering
  • 4-Wheel Disc Brakes
  • ABS brakes
  • Dual front impact airbags
  • Front anti-roll bar
  • Passenger cancellable airbag
  • Rear step bumper
  • Front reading lights
  • Passenger vanity mirror
  • Tachometer
  • Voltmeter
  • Split folding rear seat
  • Variably intermittent wipers
  • 3.73 Axle Ratio
  • Electrical
    • Cold Cranking Amps @ 0° F (Primary): 750
    • Cold Cranking Amps @ 0° F (Primary): 650
    • Maximum Alternator Capacity (amps): 130
    • Maximum Alternator Watts: 1950
  • Cooling System
    • Total Cooling System Capacity (qts): 28.5
    • Total Cooling System Capacity (qts): 26.4
  • Weight Information
    • Gross Axle Wt Rating - Front (lbs): 4800
    • Gross Axle Wt Rating - Front (lbs): 4400
    • Gross Axle Wt Rating - Rear (lbs): 6100
    • Curb Weight - Front (lbs): 4270
    • Curb Weight - Front (lbs): 3705
    • Curb Weight - Rear (lbs): 2659
    • Curb Weight - Rear (lbs): 2594
    • Gross Vehicle Weight Rating Cap (lbs): 9200
    • Gross Combined Wt Rating (lbs): 15000
  • Trailering
    • Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
    • Dead Weight Hitch - Max Tongue Wt. (lbs): 500
    • Wt Distributing Hitch - Max Trailer Wt. (lbs): 12500
    • Wt Distributing Hitch - Max Trailer Wt. (lbs): 8200
    • Wt Distributing Hitch - Max Tongue Wt. (lbs): 1250
    • Wt Distributing Hitch - Max Tongue Wt. (lbs): 820
    • Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15600
    • Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8200
    • Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1560
    • Fifth Wheel Hitch - Max Tongue Wt. (lbs): 820
  • Suspension
    • Suspension Type - Front: Single Leaf
    • Suspension Type - Rear: Multi-Leaf
    • Spring Capacity - Front (lbs): 4000
    • Spring Capacity - Rear (lbs): 6100
    • Axle Type - Front: Dana Monobeam
    • Axle Type - Rear: Ford Full-Floating
    • Axle Capacity - Front (lbs): 6000
    • Axle Capacity - Rear (lbs): 6200
    • Axle Ratio (:1) - Front: 3.73
    • Axle Ratio (:1) - Rear: 3.73
    • Shock Absorber Diameter - Front (mm): 35
    • Shock Absorber Diameter - Rear (mm): 35
    • Stabilizer Bar Diameter - Front (in): - TBD -
  • Brakes
    • Brake Type: Power
    • Brake ABS System: 4-Wheel
    • Disc - Front (Yes or ): Yes
    • Disc - Rear (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
    • Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
  • Tires
    • Front Tire Order Code: TBK
    • Rear Tire Order Code: TBK
    • Spare Tire Order Code: TBK
    • Front Tire Size: LT245/75R17E
    • Rear Tire Size: LT245/75R17E
    • Spare Tire Size: LT245/75R17E
    • Front Tire Capacity (lbs): 3195
    • Rear Tire Capacity (lbs): 3195
    • Spare Tire Capacity (lbs): 3195
    • Revolutions/Mile @ 45 mph - Front: 664
    • Revolutions/Mile @ 45 mph - Rear: 664
    • Revolutions/Mile @ 45 mph - Spare: 664
  • Wheels
    • Front Wheel Size (in): 17 x 7.5
    • Rear Wheel Size (in): 17 x 7.5
    • Spare Wheel Size (in): 17 x 7.5
    • Front Wheel Material: Steel
    • Rear Wheel Material: Steel
    • Spare Wheel Material: - TBD -
  • Steering
    • Steering Type: Power
    • Steering Ratio (:1), On Center: 17.0
    • Steering Ratio (:1), At Lock: - TBD -
    • Turning Diameter - Curb to Curb (ft): 47.5
    • Turning Diameter - Wall to Wall (ft): 49.4
  • Frame
    • Frame Type: Ladder-Type
  • Fuel Tank
    • Fuel Tank Capacity, Approx (gal): 29
    • Fuel Tank Location: Midship
  • Exterior Dimensions
    • Wheelbase (in): 141.8
    • Length, Overall w/o rear bumper (in): 231.2
    • Width, Max w/o mirrors (in): 79.9
    • Height, Overall (in): 79.5
    • Overhang, Front (in): 37.2
    • Overhang, Rear w/o bumper (in): 52.2
    • Front Bumper to Back of Cab (in): 139.1
    • Cab to Axle (in): 40.0
    • Cab to End of Frame (in): - TBD -
    • Ground to Top of Load Floor (in): 35.1
    • Ground to Top of Frame (in): - TBD -
    • Frame Width, Rear (in): - TBD -
    • Ground Clearance, Front (in): - TBD -
    • Ground Clearance, Rear (in): - TBD -
  • Cargo Area Dimensions
    • Cargo Box Length @ Floor (in): 82.4
    • Cargo Box Width @ Top, Rear (in): 63.5
    • Cargo Box Width @ Floor (in): 60.6
    • Cargo Box Width @ Wheelhousings (in): 50.9
    • Cargo Box (Area) Height (in): 20.0
    • Tailgate Width (in): - TBD -
    • Cargo Volume (ft³): 64.8
  • Interior Dimensions
    • Passenger Capacity: 6
    • Front Head Room (in): 41.4
    • Front Leg Room (in): 41.0
    • Front Shoulder Room (in): 68.0
    • Front Hip Room (in): 67.4
    • Second Head Room (in): 38.2
    • Second Leg Room (in): 32.2
    • Second Shoulder Room (in): 68.0
    • Second Hip Room (in): 67.3
  • Summary
    • Vehicle Name: Ford Super Duty F-250
    • Body Style: Supercab 6-3/4'
    • Body Code: 142" WB
Vehicles You Might Like

2012 Ford F-250SD XL

VIN: 1FT7X2B69CEC68608
Stock: JT4332A
Model: X2B
  • $16,899 MSRP


2024 Ford F-250SD XLT

VIN: 1FT7X2BN2REC74170
Stock: PC1205
Model: X2B
  • $52,500 MSRP


2024 Ford F-250SD XL

VIN: 1FT8X2BA3RED94271
Stock: DD4465
Model: X2B
  • $52,221 MSRP

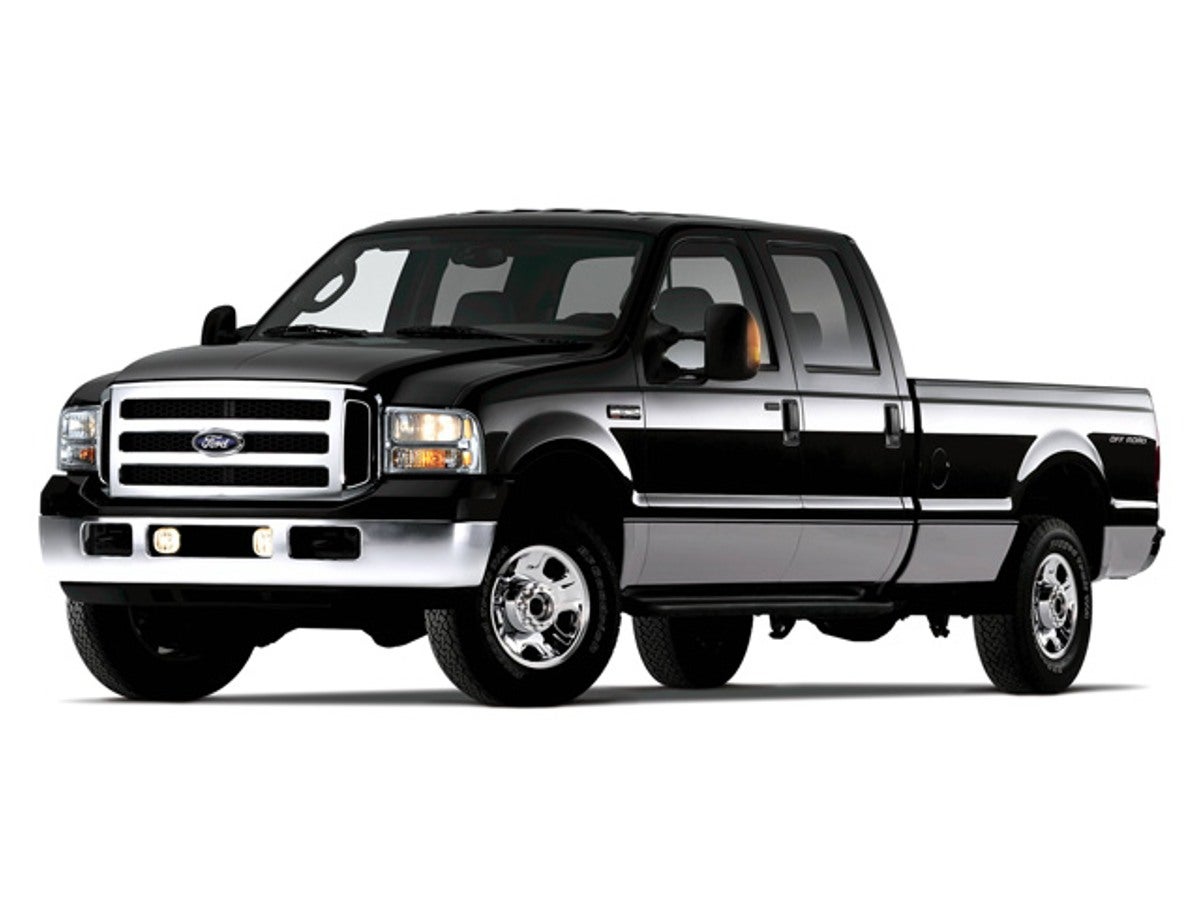

May not represent actual vehicle. (Options, colors, trim and body style may vary)
