• 4.10 axle ratio w/limited slip rear axle

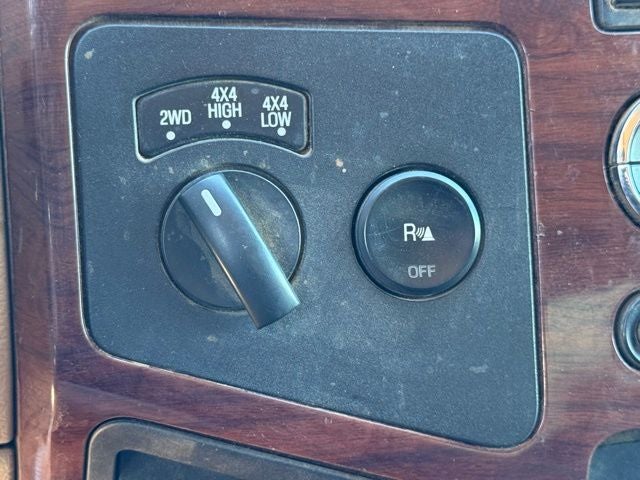

• Manual transfer case & hubs

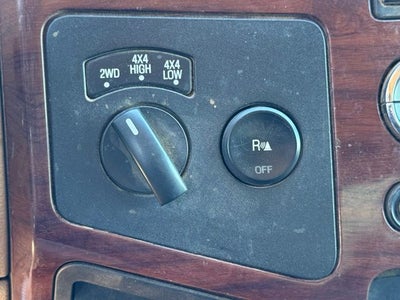

• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• 157-amp HD alternator
• Trailer tow pkg-inc: 7-wire harness w/relays, 7/4-pin trailer combination connector
• Class V trailer hitch receiver-inc: 2" hitch

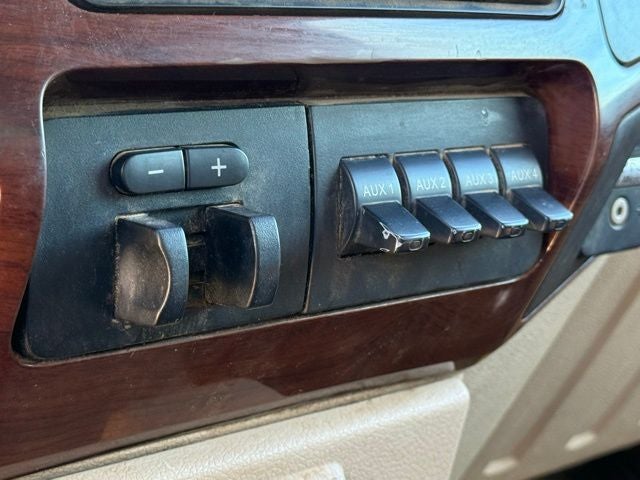

• Integrated trailer brake controller
• 8' pickup box-inc: (6) tie-down hooks, partitionable & stackable storage
• (2) front tow hooks
• Mono-beam front axle w/coil spring suspension
• Rear auxiliary springs
• Full-floating rear axle
• HD shock absorbers
• Front/rear stabilizer bar
• Pwr steering w/steering damper
• Pwr 4-wheel disc brakes w/hydro-boost
• 4-ton hydraulic jack

• (7) LT245/75R17E all-season BSW tires
• 17" forged aluminum wheels w/unique center caps w/King Ranch logo
• Full-size spare tire & wheel w/lock & carrier
• Accent color front bumper
• Accent color rear bumper w/step pad
• Black lower air dam
• Front fender vents
• Accent color box top & tailgate moldings
• Accent color illuminated tubular cab steps
• Unique chrome grille w/accent color insert
• Autolamp/rainlamp dual beam jewel effect headlamps
• Fog lamps
• Pickup box/cargo lights
• Clearance lights-inc: roof, rear fender, below tailgate
• Underhood service light

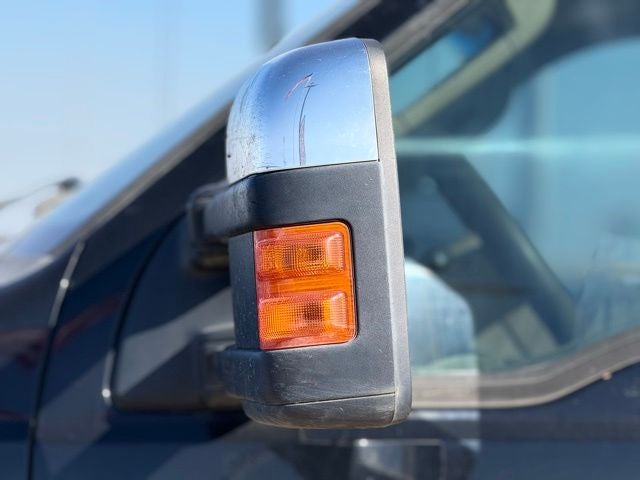

• PowerScope pwr telescoping & folding heated trailer tow mirrors -inc: turn signals, integrated clearance lights, heated convex spotter mirror
• Body-color mirror caps
• Solar tinted windshield & front door glass
• Rear privacy glass
• Pwr sliding rear window
• Interval windshield wipers
• Front license plate bracket
• Rear license plate bracket
• Body-color door handles

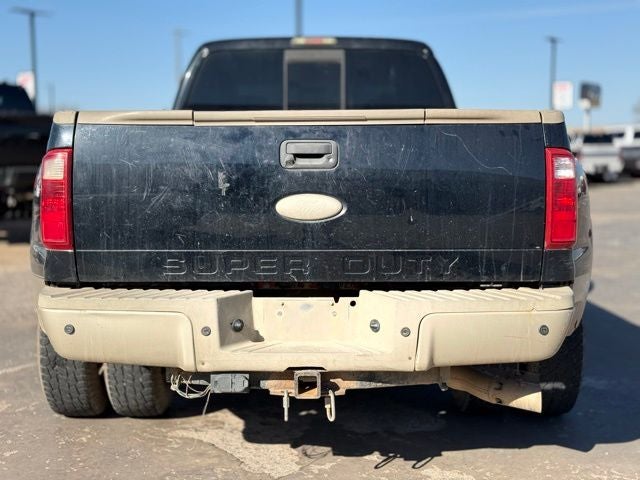

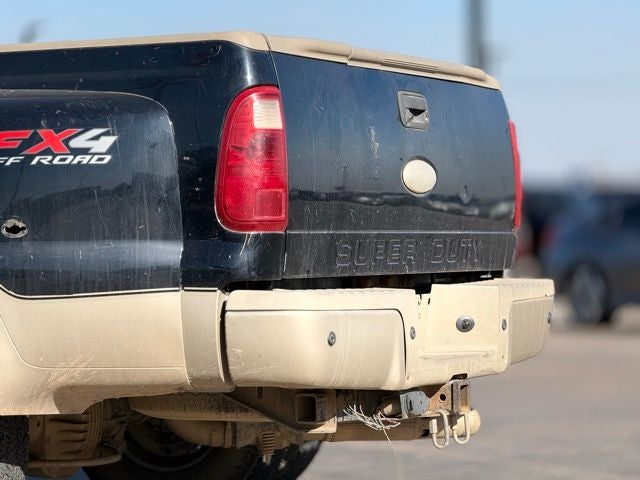

• Removable locking tailgate w/black handle & Tailgate Assist

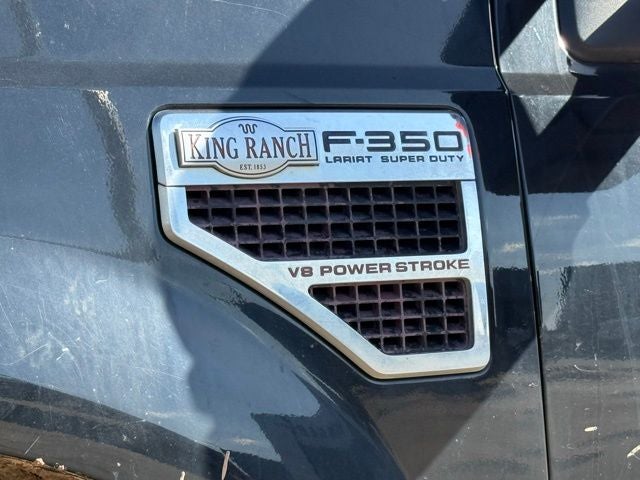

• King Ranch fender badges

• Premium sound system -inc: AM/FM stereo w/in-dash 6-disc CD changer, MP3 capability, aux audio input jack, clock, (8) speakers & subwoofer
• Sirius satellite radio
• SYNC voice activated communications & entertainment system -inc: Bluetooth® capability, steering wheel controls, USB port, audio input jack, 911 Assist, vehicle health reports

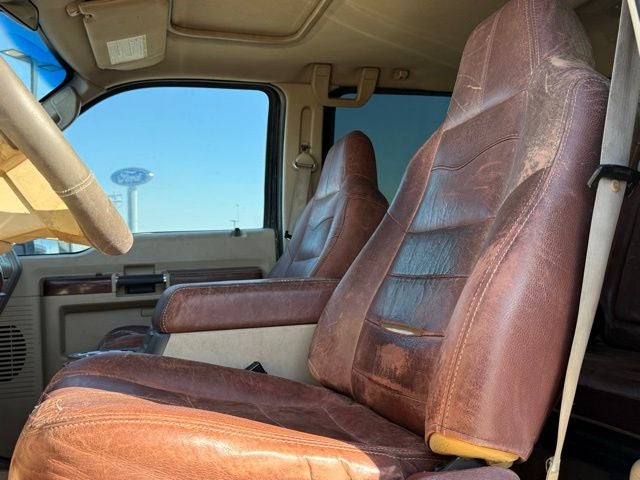

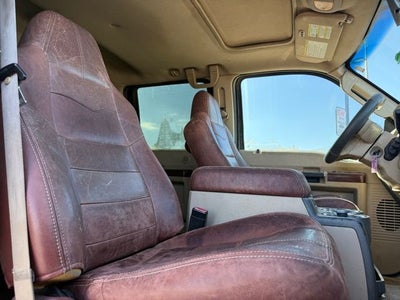

• Unique King Ranch Chaparral brown leather heated quad captains chairs -inc: front/rear consoles w/leather-covered lids & armrests
• Driver & front passenger manual lumbar support
• Pwr driver & front passenger seats w/driver memory

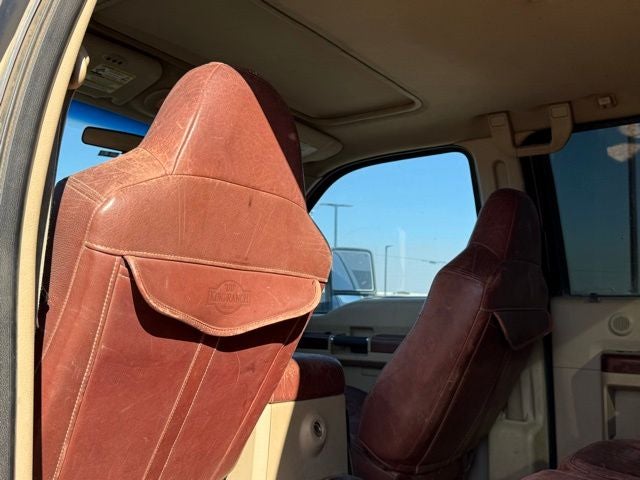

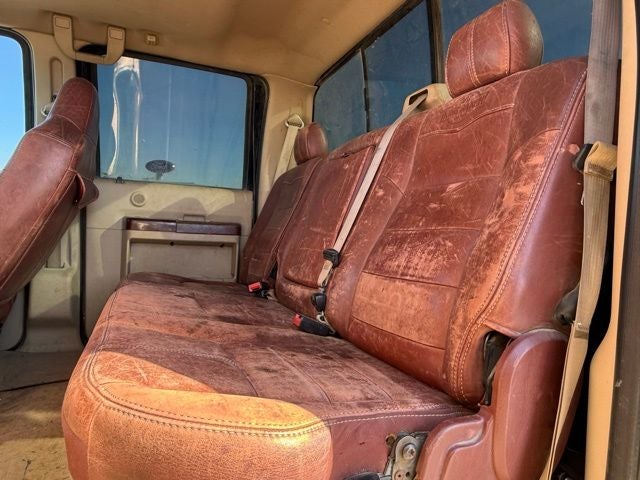

• Unique King Ranch Chaparral Brown leather rear captain chairs -inc: console w/leather-covered lid & armrests, cupholders
• Color-keyed carpet full-floor covering
• Unique front/rear floor mats w/King Ranch logo
• Color-keyed scuff plates
• Tilt steering wheel

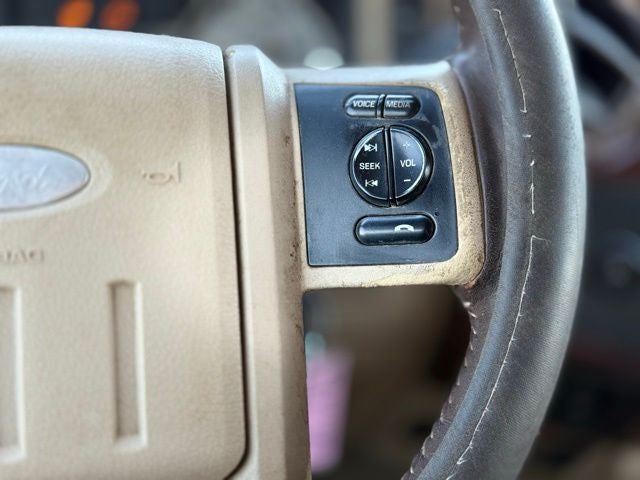

• Unique King Ranch leather-wrapped steering wheel w/audio controls
• Pwr windows w/driver one-touch-down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches, autolock & auto unlock, SecuriCode keyless entry keypad
• Pwr adjustable pedals w/memory
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock anti-theft ignition

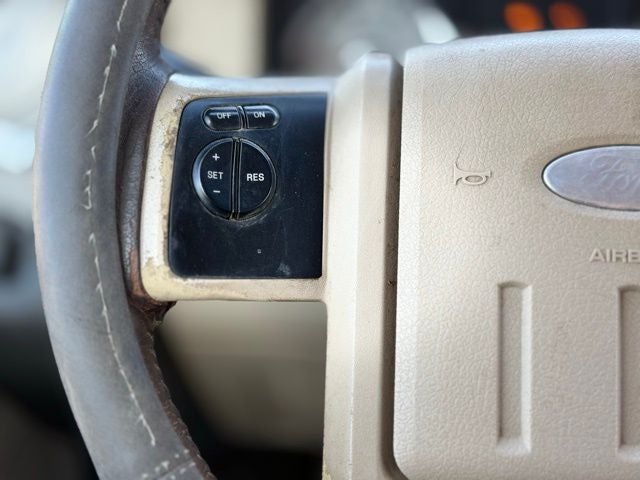

• Cruise control -inc: steering wheel mounted controls

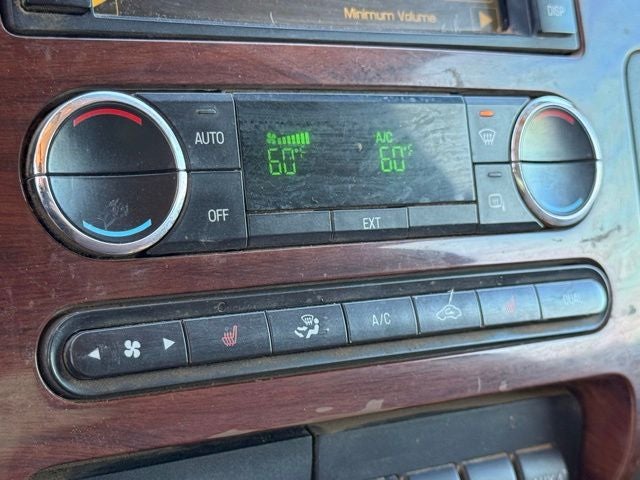

• Dual zone electronic automatic temperature control (EATC)
• (4) air registers w/positive shut-off
• Rear seat air conditioning ducts
• Auxiliary pwr point
• Dash-top tray
• Glove box
• Ashtray & cigar lighter
• Instrument panel mounted storage bin & trash bag hook
• Color-keyed door panel trim -inc: soft armrest, grab handle, reflector, woodgrain upper applique, upper & lower map pockets, King Ranch Chaparral leather inserts
• Electrochromic rearview mirror w/built-in microphone for SYNC
• Overhead console-inc: garage door opener & sunglass bin
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & passenger grab handles
• Rear seat LH/RH grab handles
• Dual color-keyed cloth sunvisors-inc: driver-side map strap, dual covered lighted mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• Driver & front passenger airbags
• Reverse vehicle aid sensor
• SOS post crash alert system -inc: doors unlock, horn & hazard flashers are activated when air bags are deployed
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats

6.4L OHV V8 TURBO-DIESEL POWER STROKE ENGINE

• 135-amp HD alternator
• dual 750 CCA battery

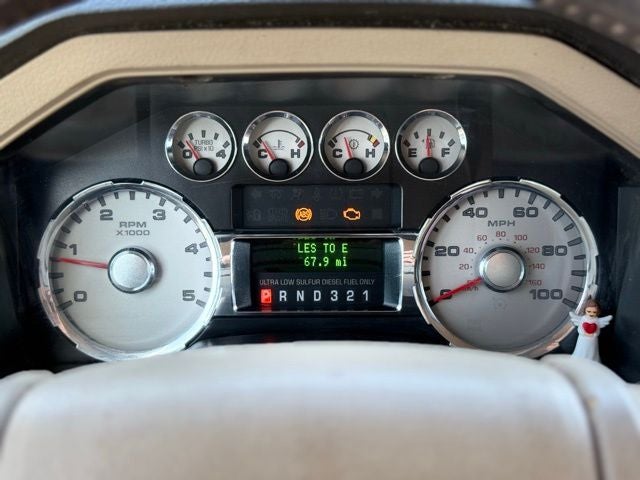

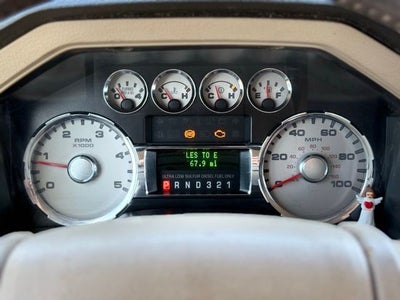

• TurboBoost gauge
• air filter minder
• 15
• 000# trailer hitch receiver w/2.5" hitch & 2" hitch adapter
• 4-wheel pwr hydro-boost disc brakes *Includes Winter Front Grille Cover in AK
• CO
• ID
• IA
• MA
• ME
• MI
• MN
• MT
• NH
• NY
• ND
• NE
• SD
• VT
• WI
• WY*

• GVWR: 12,600 lb Payload Package
• 4 Speakers
• AM/FM radio: SIRIUS(R)
• CD player
• Premium Electronic AM/FM Stereo w/Single CD
• Satellite Radio
• Air Conditioning
• Automatic temperature control
• Front dual zone A/C
• Power driver seat
• Power steering
• Power windows
• Remote keyless entry
• Steering wheel mounted audio controls
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Rear anti-roll bar
• Rear Parking Sensors
• Delay-off headlights
• Front fog lights
• Fully automatic headlights
• Panic alarm
• Security system
• Cruise Control
• Dual rear wheels
• Bumpers: chrome
• Heated door mirrors
• Power door mirrors
• Rear step bumper
• Turn signal indicator mirrors
• Auto-dimming Rear-View mirror
• Compass
• Driver door bin
• Driver vanity mirror
• Front reading lights
• Illuminated entry
• Leather steering wheel
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Rear reading lights
• Rear seat center armrest
• Tachometer
• Tilt steering wheel
• Trip computer
• Voltmeter
• Heated front seats
• Leather Seating Surfaces 40/20/40 Split Bench Seat
• Power passenger seat
• Split folding rear seat
• Front Center Armrest w/Storage
• Passenger door bin
• 17" Forged Polished Aluminum Wheels
• Alloy wheels
• Variably intermittent wipers
• Clean CarFax
• Active Parking Assist

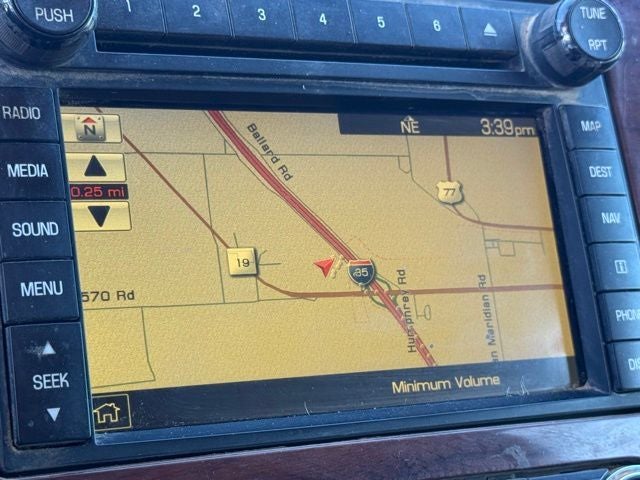

• Navigation Capable
• Touchscreen Controls
• Remote Vehicle Start
• Automatic Headlights
• Voice Recognition
• Bluetooth® Hands-Free
• Premium Package
• Preferred Equipment Group
• Center Console
• Lifetime Window Tint Protection (Available)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 135
• Maximum Alternator Capacity (amps): HD 157
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 30.5
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9000
• Curb Weight - Front (lbs): 4761
• Curb Weight - Front (lbs): 4047
• Curb Weight - Rear (lbs): 3242
• Curb Weight - Rear (lbs): 3164
• Gross Vehicle Weight Rating Cap (lbs): 13000
• Gross Vehicle Weight Rating Cap (lbs): 12600
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 21500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2250
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15200
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 9000
• Axle Type - Front: Dana 60 Monobeam
• Axle Type - Rear: Dana 80 Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 9000
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 0.94
• Stabilizer Bar Diameter - Rear (in): 0.87
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 2910
• Rear Tire Capacity (lbs): 2910
• Spare Tire Capacity (lbs): 2910
• Revolutions/Mile @ 45 mph - Front: 664
• Revolutions/Mile @ 45 mph - Rear: 664
• Revolutions/Mile @ 45 mph - Spare: 664
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 56.5
• Turning Diameter - Wall to Wall (ft): 58.4
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 38
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 172.4
• Length, Overall w/o rear bumper (in): 262.4
• Width, Max w/o mirrors (in): 95.7
• Height, Overall (in): 79.6
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.3
• Cab to Axle (in): 56.3
• Cab to End of Frame (in): 96.6
• Ground to Top of Load Floor (in): 35.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 36.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.0
• Cargo Box Width @ Top, Rear (in): 63.6
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 77.4
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Second Head Room (in): - TBD -
• Second Leg Room (in): - TBD -
• Second Shoulder Room (in): - TBD -
• Second Hip Room (in): - TBD -
• Summary

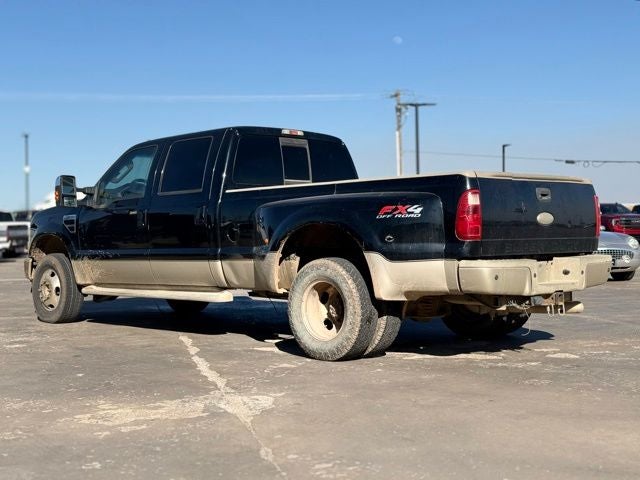

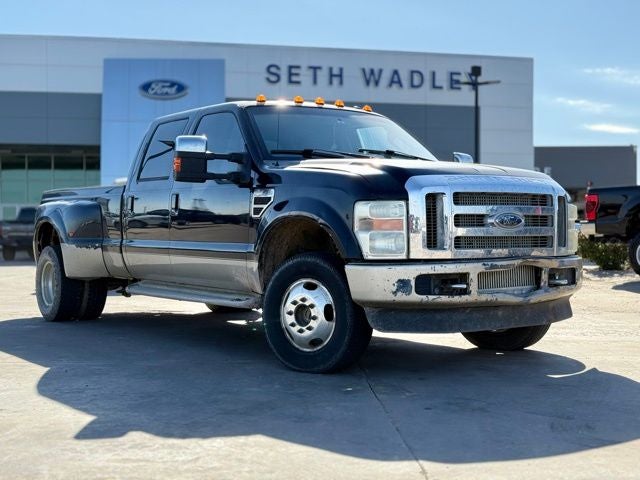

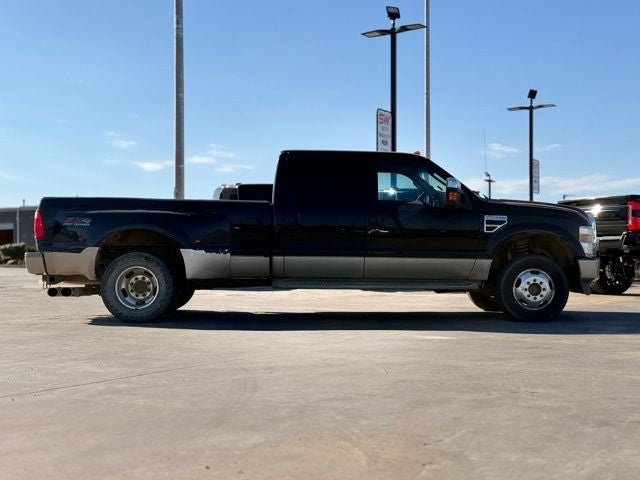

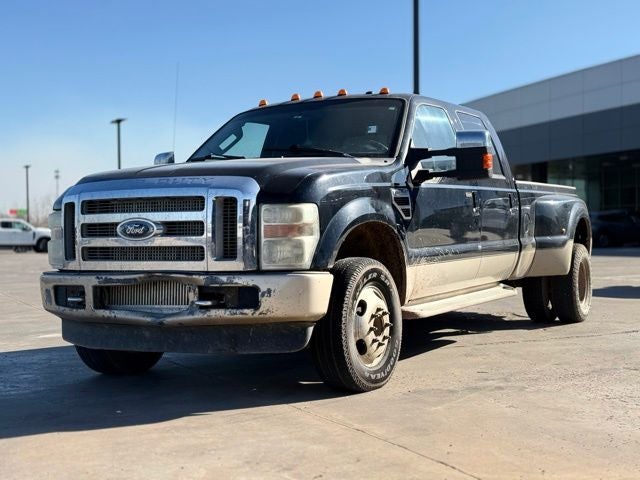

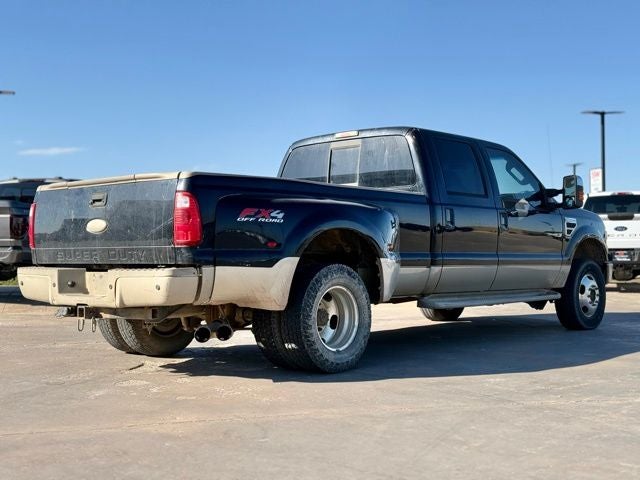

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: Crew Cab 8'
• Body Code: 172" WB
